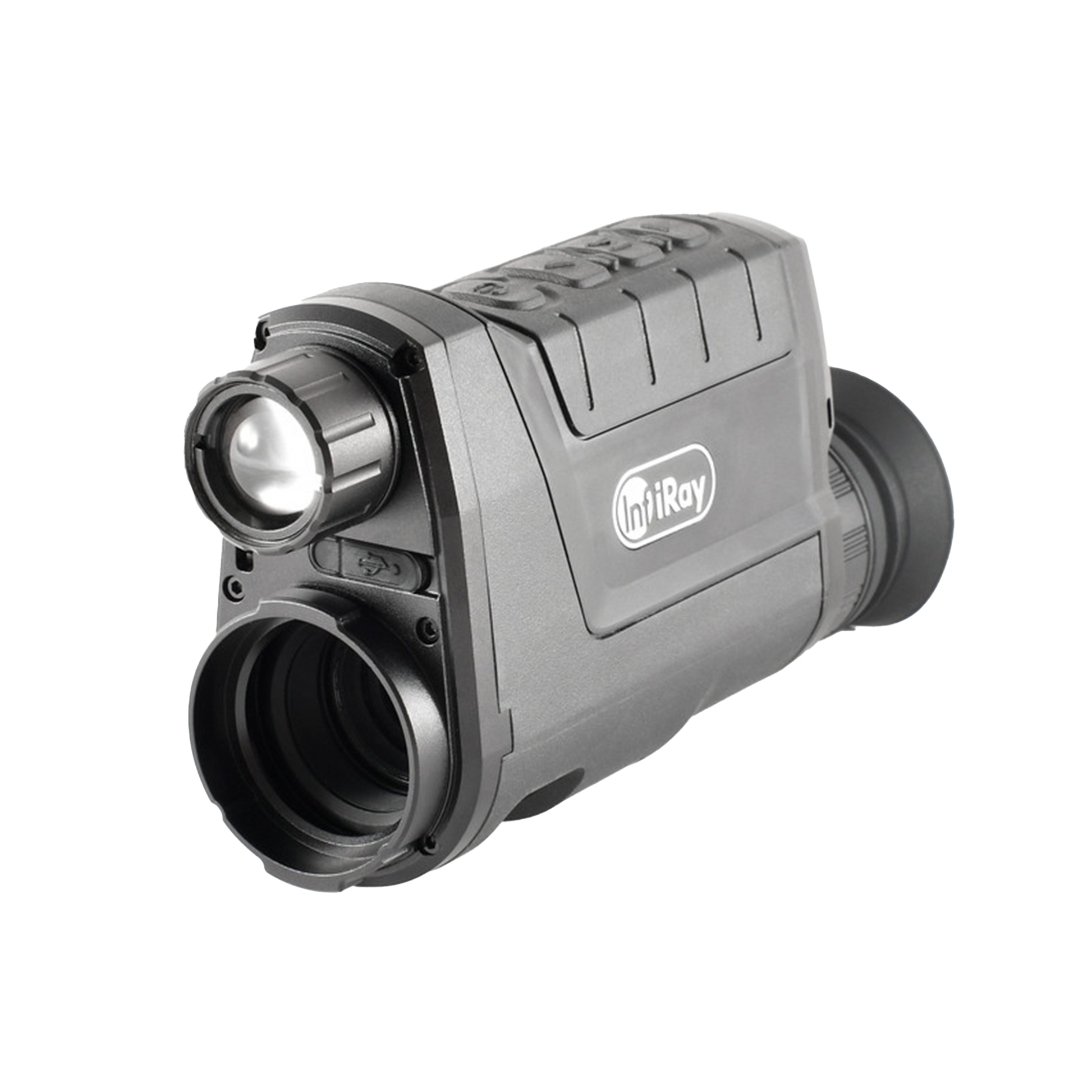

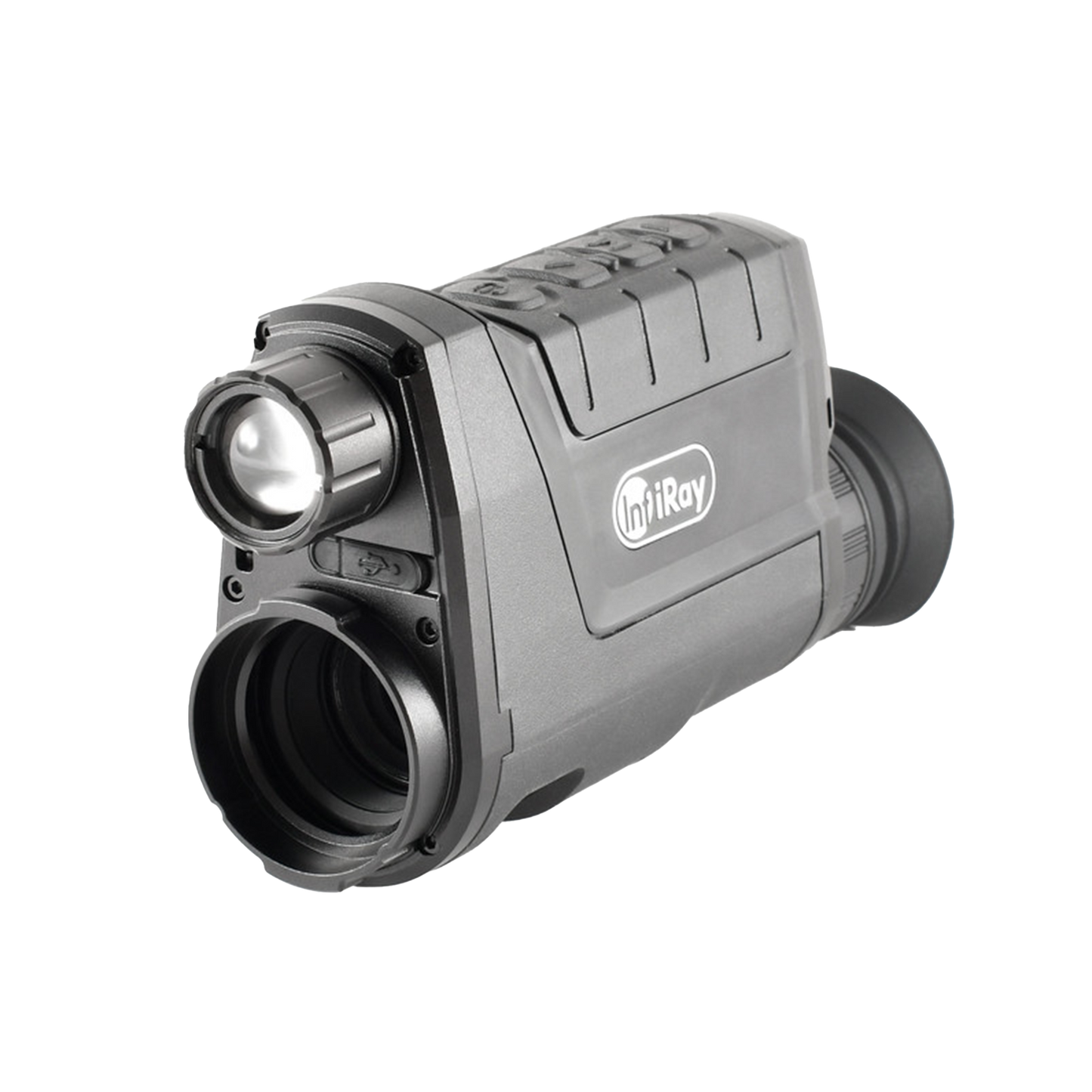

CABIN CBL25 384 Thermal Monocular

The InfiRay Outdoor Cabin Series is a compact and powerful optic that operates easily with one hand. The CABIN is available with multiple lens options and its 50Hz 12 μm Micro II sensor featuring InfiRay’s next generation MATRIX III processing ensures an unmatched viewing experience on it’s HD display. Standard features of the Cabin Series include a quick focus F/1.0 lens, stadiametric rangefinder, image and video capture, wireless connectivity, picture in-picture and an LED flashlight to guarantee you have everything you’ll need in the palm of your hand.

• Optics

  Objective Focal Length

  25mm f/1.0

  Optical Magnification

  2.5X

  Digital Magnification

  4X, stepped

  Detection Range

  1375 Yards

  Display Type

  LCOS

  Display Resolution

  1280×960

  Eye Relief

  20mm

  Diopter Range

  -5 - +5

  Objective F#

  1.0

  Horizontal Angular Field of View

  10.5°

  Vertical Angular Field of View

  7.9°

  Objective Lens Material

  Germanium

  Focusing Mechanism

  Manual Focus
