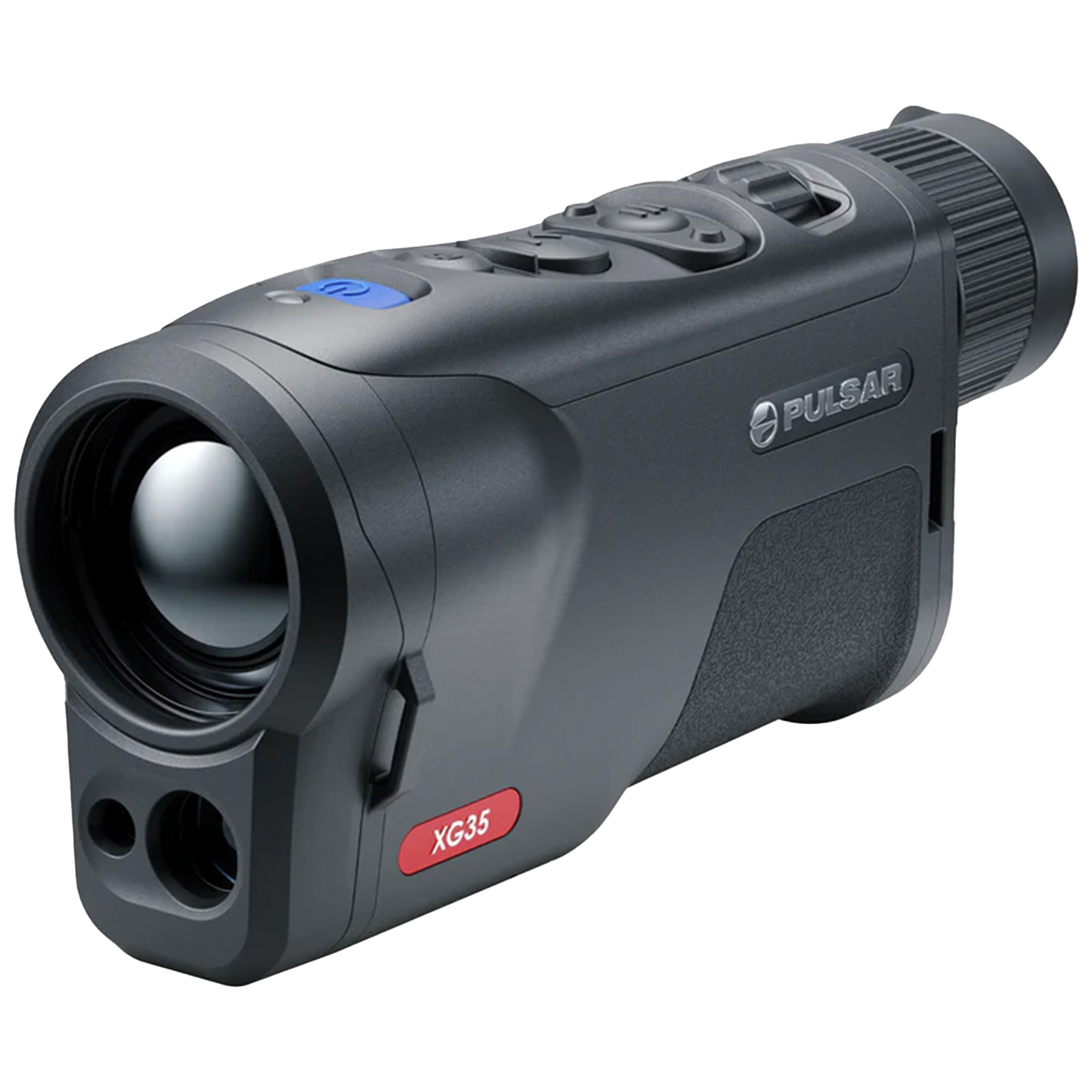

Built for long and tough hunts, the Pulsar Oryx LRF XG35 is compact, delivers an extra-high detail thermal image, and comes with a next-gen rangefinder.

Pulsar Oryx LRF XG35 640 Features:

TRAIL-PROVEN TECH

Factory 3-Year Warranty with 2-Year Extension upon registration for USA Market

Pulsar Oryx LRF XG35 640 Specifications:

Main

• Sensor 640x480 pix. @ 12 µm (sNETD <20 mK)
• Objective lens F35/1.0
• Magnification, x2.5 - 20
• Field of view (HxV), degrees 12.5
• Detection range, m 1800

Sensor

• Type uncooled
• Resolution, pixels 640x480
• Pixel pitch, µm12
• NETD, mK<40
• Frame rate, Hz50
• sNETD, mK<20

Optics

• Objective lens F35/1.0
• Magnification, x2.5-20x
• Field of view (HxV), degrees12.5
• Eye relief, mm 14

Display

• Type AMOLED HD
• Resolution, pixels 1024x768

Range Performance

• Detection range, m1800

Laser Rangefinder

• Max. measuring range, m1500
• Measurement accuracy, m± 1
• Safety class for laser equipment1 (IEC 60825-1:2014)
• Wavelength, nm905

Video Recorder

• Video / photo resolution, pixels 1024x768
• Video / photo format .mp4 / .jpg
• Built-in memory, GB64

Wi-Fi

• Wireless Protocol Wi-Fi
• Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
• Frequency, GHz 2.4 / 5

Environmental Characteristics

• Degree of protection, IP code (IEC60529)IP67
• Operating temperature range, °C-25 – +40

Connections and Compatibilities

• Supported Application Stream Vision 2

Power Supply

• Output voltage, V3.0 – 4.2
• Battery type APS 5 Li-ion Battery Pack
• Capacity, mAh 4900
• Operating time on battery pack, h12
• External power supply, V5V; 9V (USB Type-C Power Delivery)

Weight & Size

• Body material Magnesium alloy
• Dimensions, mm 179x52x77
• Weight, kg 0.5
